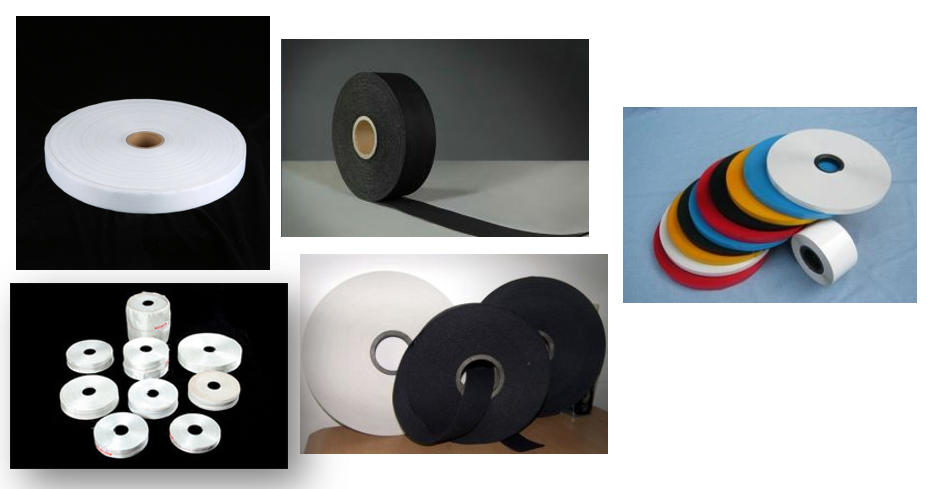

Product Overview
Our non metal tapes are essential components in cable manufacturing, providing insulation, protection, and structural support. These specialized tapes are designed to meet the demanding requirements of modern cable systems, offering excellent electrical properties, mechanical strength, and environmental resistance.

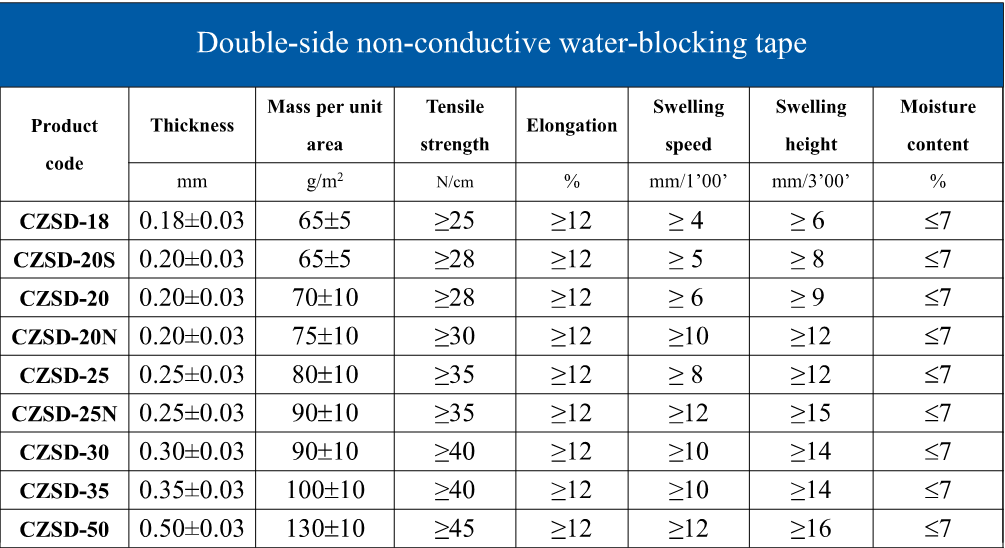

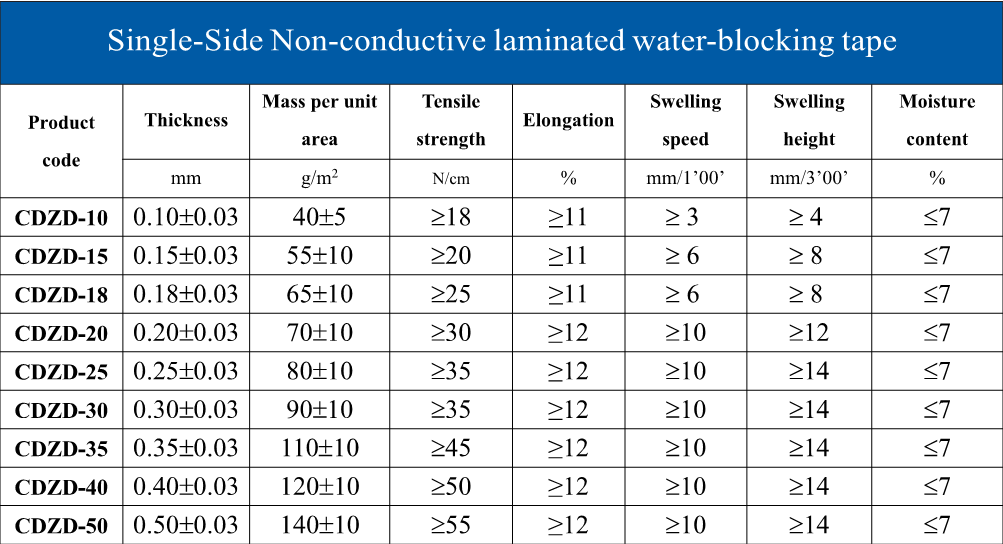

Non-conductive Water Blocking Tape
Non-conductive water blocking tape is a material that prevents water from entering cables by absorbing and swelling into a gel when exposed to moisture, protecting the cable’s integrity. When water enters a cable protected by water-blocking tapes, in the first 20-60 seconds, it can absorb 30-60 times of water, the super absorbent powder within the tape instantly forms a water-blocking gel.

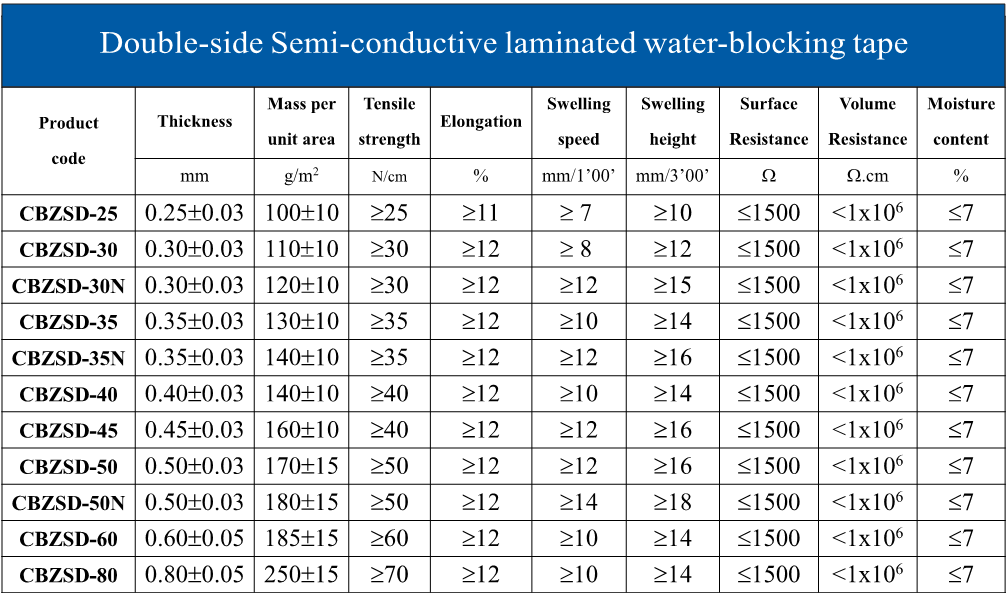

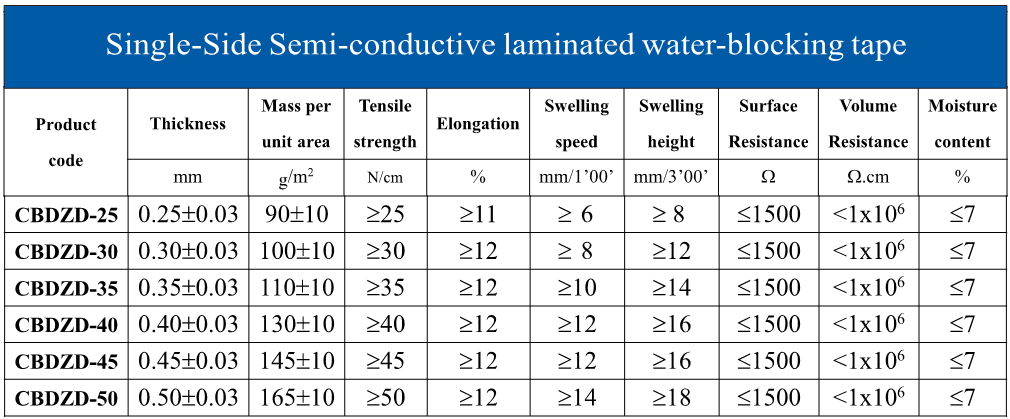

Semi-conductive Water Blocking Tape
Semi-conductive water-blocking tape is a special tape used in power cables that absorbs moisture and swells to create a seal, preventing water from penetrating the cable. It is also electrically conductive, which helps to improve the distribution of the electric field within the cable and reduce partial discharges, thereby enhancing the cable’s performance and longevity.

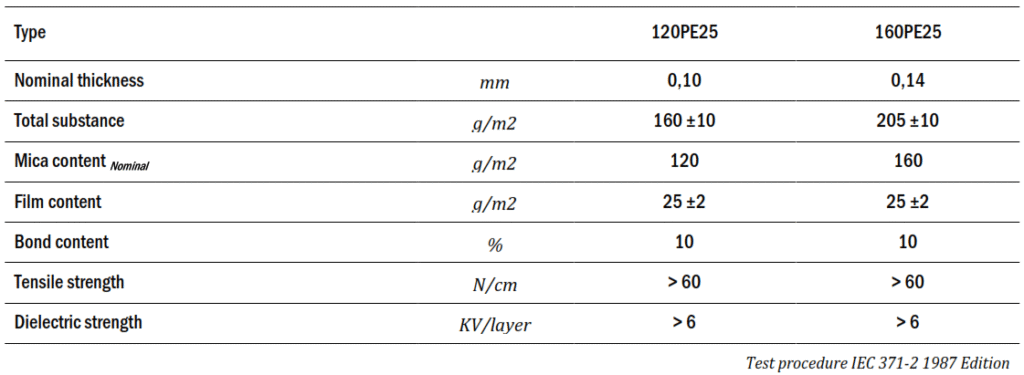

Mica Film Tape
Characteristic
Applications
- Power and control cables
- Instrumentation and signaling cables
- Large motor insulation
- Generator windings
Key Features
- Moisture resistance
- Easy handling and application
- Outside diameter up to 400mm
- Minimum 12 months under normal conditions (20°C, 50% r.h.)

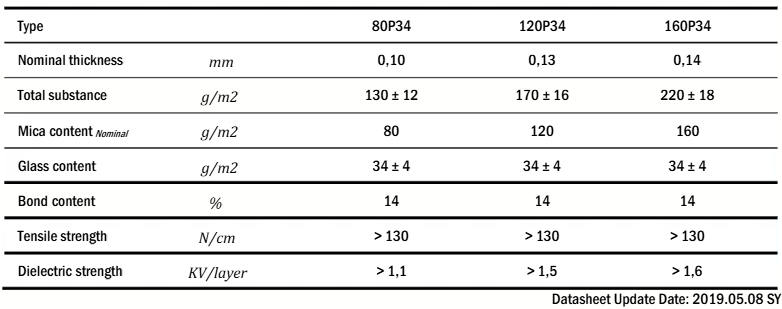

Mica Glass Tape
Characteristic
Applications
- Power and control cables
- Instrumentation and signaling cables
- High-temperature electrical equipment
- Motor windings
Key Features
- Glass fiber reinforcement
- Flexible and conformable
- Outside diameter up to 400mm
- Minimum 12 months under normal conditions (20°C, 50% r.h.)

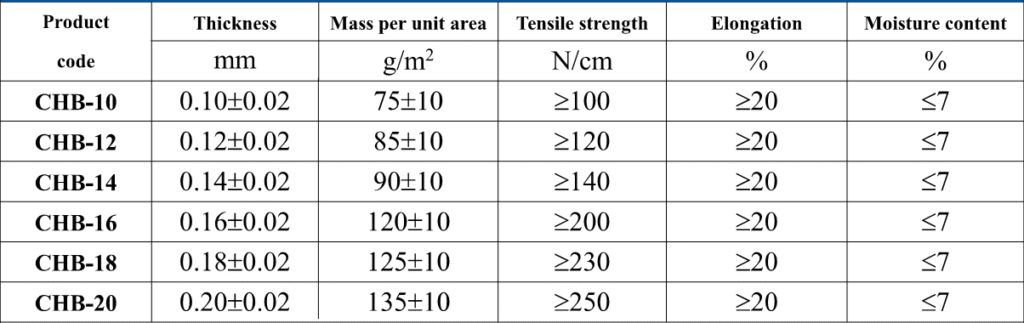

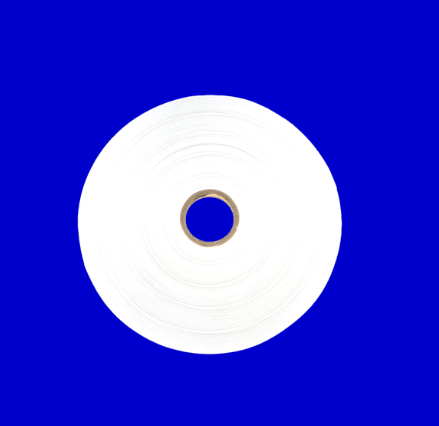

Polyester Woven Fabric Tape
Characteristic
Applications
- Separating between cable components
- Heavy duty cable-binding
- Industrial cable harnesses
